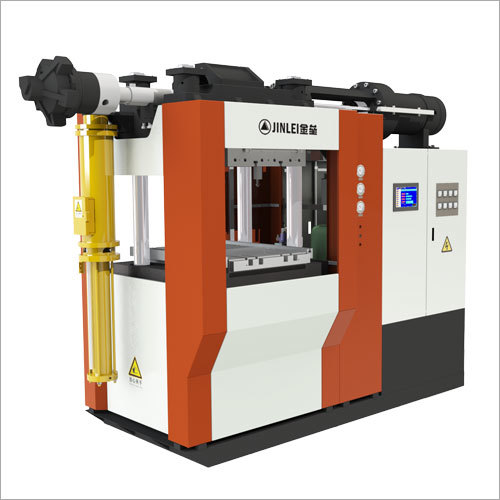

Angle Rubber Injection Machine for cable joint

Angle Rubber Injection Machine for cable joint
Angle Rubber Injection Machine for cable joint
Product Code : JLJ-320L
Brand Name : JINLEI
Price And Quantity
  • Minimum Order Quantity
  • 1 set
Product Specifications
  • Type
  • angel
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • Control System
  • PLC Control
  • Cooling System
  • Water Cooling
  • Weight
  • 8T
Product Description

Equipment characteristics :

  • With unique feeding exhaust device, more effective to eliminate rubber entrapment, ensure higher product percent of pass.
  • Using high precision electronic scale control injection volume, function of plasticizing multistage speed, pressure adjustment, ensure the measurement precision and stability.
  • Using low speed, high torque hydraulic motor direct with compression screw, suitable for different hardness and adhesive rubber feeding.
  • Unique design of non-return device, ensure no bad rubber, no hide rubber and reverted rubber, make sure injection accurate.
  • Multi section stepless injection, segmented adjust speed and pressure, adapted to the different technological requirements of the rubber, ensure the product quality.
  • Plasticizing and injection with independent oil temperature control, temperature can be set at random respectively, Wider temperature flow, ensure rubber temperature uniformity and accuracy.
  • Adopts without leakage oil drum temperature structure, ensure heat conduction oil no leakage.
  • Low speed and pressure clamping mould protection function.
  • Shoulderless clamping structure.

Technical Parameter :

Machine Model

JLJ-220L

JLJ-320L

JLJ-420L

JLJ-520L

Clamping Force (KN)

2200

3200

4200

5200

Opening Stroke (mm)

480

570

600

700

Heating Plate Dim. (mm)

550x550

650x700

750x750

800x850

Injection Volume (c.c.)

2000

3000

4000-6000

4000-6000

Dimension (m)

3.1x2.1x2.4

3.6x2.3x2.6

4.8x2.5x3.3

5.1x2.6x3.5

Weight (T)

6

8

12.5

17

Trade Information
  • FOB Port
  • guangzhou,shenzhen
  • Payment Terms
  • Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C)
  • Supply Ability
  • 15SETS Per Month
  • Delivery Time
  • 40 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Export package or as customers' requirements
  • Main Export Market(s)
  • Asia, Central America, North America, South America, Middle East, Africa
  • Main Domestic Market
  • All India
