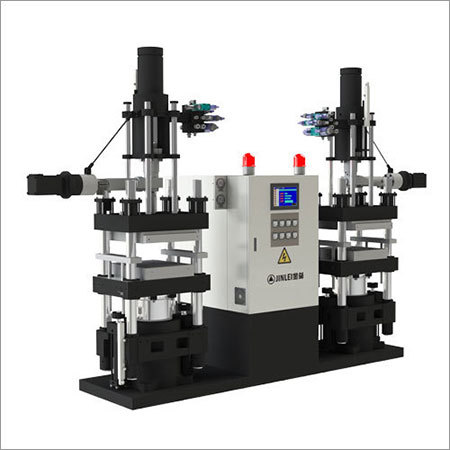

Rubber Injection Machine for automatic rubber part

Rubber Injection Machine for automatic rubber part
Rubber Injection Machine for automatic rubber part
Product Code : JLL-120LV
Price And Quantity
  • Minimum Order Quantity
  • 1 set
Product Specifications
  • Type
  • Vertical
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • Control System
  • PLC Control
  • Cooling System
  • Water Cooling
  • Weight
  • 7500 Kilograms (kg)
Product Description

Equipment characteristics :

  • With unique feeding exhaust device, more effective to eliminate rubber entrapment, ensure higher product percent of pass.
  • Using high precision electronic scale control injection volume, function of plasticizing multistage speed, pressure adjustment, ensure the measurement precision and stability.
  • Using low speed, high torque hydraulic motor direct with compression screw, suitable for different hardness and adhesive rubber feeding.
  • Unique design of non-return device, ensure no bad rubber, no hide rubber and reverted rubber, make sure injection accurate.
  • Multi section stepless injection, segmented adjust speed and pressure, adapted to the different technological requirements of the rubber, ensure the product quality.
  • Plasticizing and injection with independent oil temperature control, temperature can be set at random respectively, Wider temperature flow, ensure rubber temperature uniformity and accuracy.
  • Adopts without leakage oil drum temperature structure, ensure heat conduction oil no leakage.
  • Low speed and pressure clamping mould protection function.
  • Shoulderless clamping structure.

Technical Parameter :

Machine Model

JLL-63LV

JLL-120LV

JLL-220LV

JLL-320LV

Clamping Force (KN)

630

1200

2200

3200

Opening Stroke (mm)

250

280

300

400

Heating Plate Dim. (mm)

400x400

450x450

550x550

650x700

Injection Volume (c.c.)

1000

1000

2000

3000

Dimension (m)

3.3x1.7x2.6

3.7x1.5x2.9

5.0x2.1x3.2

5.4x2.3x3.5

Weight (T)

6.3

7.5

10.5

13

Trade Information
  • FOB Port
  • guangzhou,shenzhen
  • Payment Terms
  • Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
  • Supply Ability
  • 20SETS Per Month
  • Delivery Time
  • 35 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Export package or as customer's requirements
  • Main Export Market(s)
  • Asia, Central America, North America, South America, Middle East, Africa
  • Main Domestic Market
  • All India
